F-type
25 micro-contact points, including five microchannels.
04Professional Technology
Controlled delivery.
Trained professional use.
The EPM micro-array delivery device combines a precision contact interface, electroporation-assisted cosmetic care and controlled dispensing within one trained professional workflow.
01WNE-01 professional beauty device
02F / H precision interfaces
03Face · scalp · hand care
04.1EPM system
Precision micro-array + electroporation
Technology becomes meaningful when it is governed by assessment and method.
The device is designed for professional beauty-care environments and works with compliant cosmetic serums. Its purpose is to support even product distribution and an enhanced cosmetic-care experience across selected facial, scalp and hand protocols.

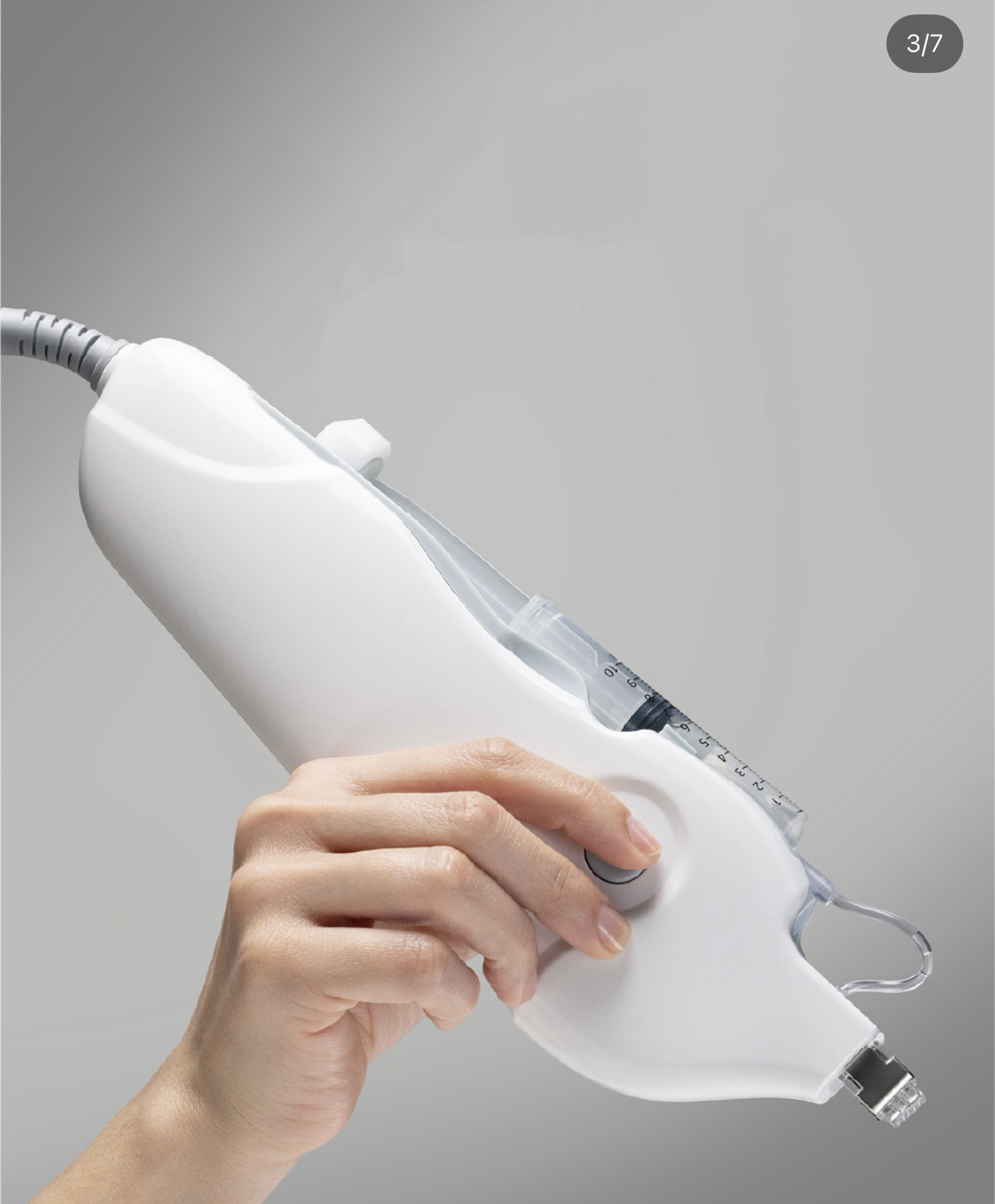

04.2Handpiece architecture
Control at the point of delivery.
The handpiece integrates a 5 ml or 10 ml syringe holder, controlled forward dispensing, a trigger key and a replaceable single-use micro-array interface.
H-type
22 micro-contact points, including six microchannels.
The micro-array head is single-person, single-use and must be discarded after the session. Do not touch the contact surface during assembly.
04.3Delivery head
Single-use precision interface
Uniform contact.
Defined cosmetic delivery.
The replaceable head combines a three-dimensional micro-contact array with precision microchannels. During trained cosmetic use, contact and formula dispensing occur in one controlled sequence, supporting even surface coverage without relying on manual post-application alone.
0.5 mmcontact height0.1 mmcontact diameter0.05 mmmicrochannel diameter
Original delivery-head architecture reproduced from the MESONUEVO EPM technical presentation.
04.4Control logic
Parameters adapted to area, skin state and formula.
Electroporation
Five selectable levels for the electroporation-assisted cosmetic mode.
Contact
Five levels governing contact between the interface and the skin surface.
Dispensing
Five levels controlling the forward movement and delivered liquid volume.
Frequency
Adjustable interface movement from 1 Hz to 5 Hz.
Residual mode
Movement without dispensing supports the final distribution of remaining formula.
04.5Technical specifications
WNE-01
- Model
- WNE-01
- Device size
- 30.2 × 27.2 × 12.6 cm
- Net weight
- 2.5 kg
- Power
- DC 12 V · 4 A
- Electroporation
- Levels 1–5
- Contact setting
- Levels 1–5
- Dispensing volume
- Levels 1–5
- Frequency
- 1–5 Hz
- Syringe formats
- 5 ml / 10 ml
- Interfaces
- F-type / H-type
04.6Professional workflow
Prepare. Configure. Deliver. Document.
- 01
Assess
Confirm the care area, cosmetic objective and suitability for professional EPM care.
- 02
Prepare
Cleanse the face, scalp or hand area and document the present condition.
- 03
Assemble
Fit the appropriate syringe holder and a new single-use F- or H-type interface.
- 04
Configure
Select appropriate parameters based on area, condition and the compliant cosmetic formula.
- 05
Complete
Finish with gentle cosmetic care, record settings and clean the device and handpiece.
04.7Use boundary
Professional beauty equipment.
Not a medical device.
The EPM device is intended only for cosmetic skin-surface care and assisted application of compliant cosmetic products. It is not intended to diagnose, treat or manage any health condition.
- Do not use on visibly broken, exuding or severely irritated skin.
- Postpone use when the area is sun-stressed, excessively sensitive or actively uncomfortable.
- Do not use with a cosmetic ingredient known to be unsuitable for the client.
- Pregnancy, breastfeeding or special physical conditions require prior professional advice.
- Stop immediately if significant discomfort occurs.
Professional formulas
